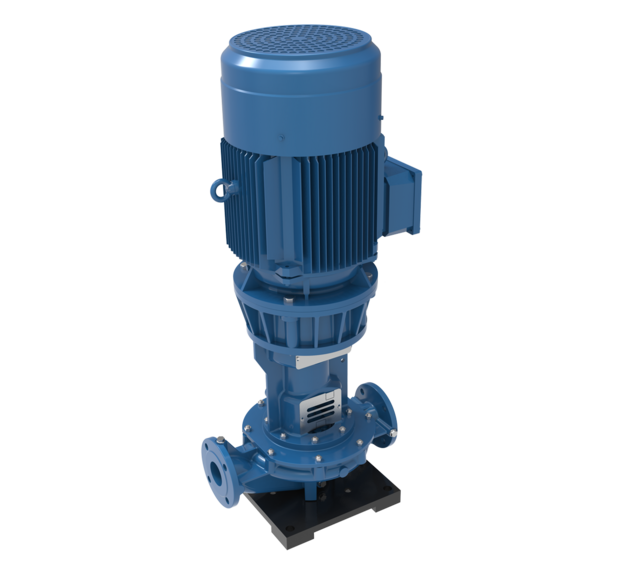

Inline pump
Type series IA
Pumps of type series IA are single stage, normal priming inline design centrifugal pumps.
Range of application
Materials
The standard materials for pump casing and impeller are cast iron or bronze. Materials can be customized according to individual demands.
Pumping media
Depending on material selection: clean and slightly soiled liquids, cold and hot water, condensate, oils, heat transfer oil, leaches and acids.
Drive
Low noise IEC-standard three phase motor according to efficiency class IE3. Other executions and types of engines on special request.
Technical details
Operating data
| Flow rate | Q | up to 1.700 m³/h |
| Delivery height | H | up to 130 m |
| Medium temperature | T | -20 °C to +110 °C |
| Operating pressure | p | up to 10 (16) bar |
Other operating conditions possible on request!
